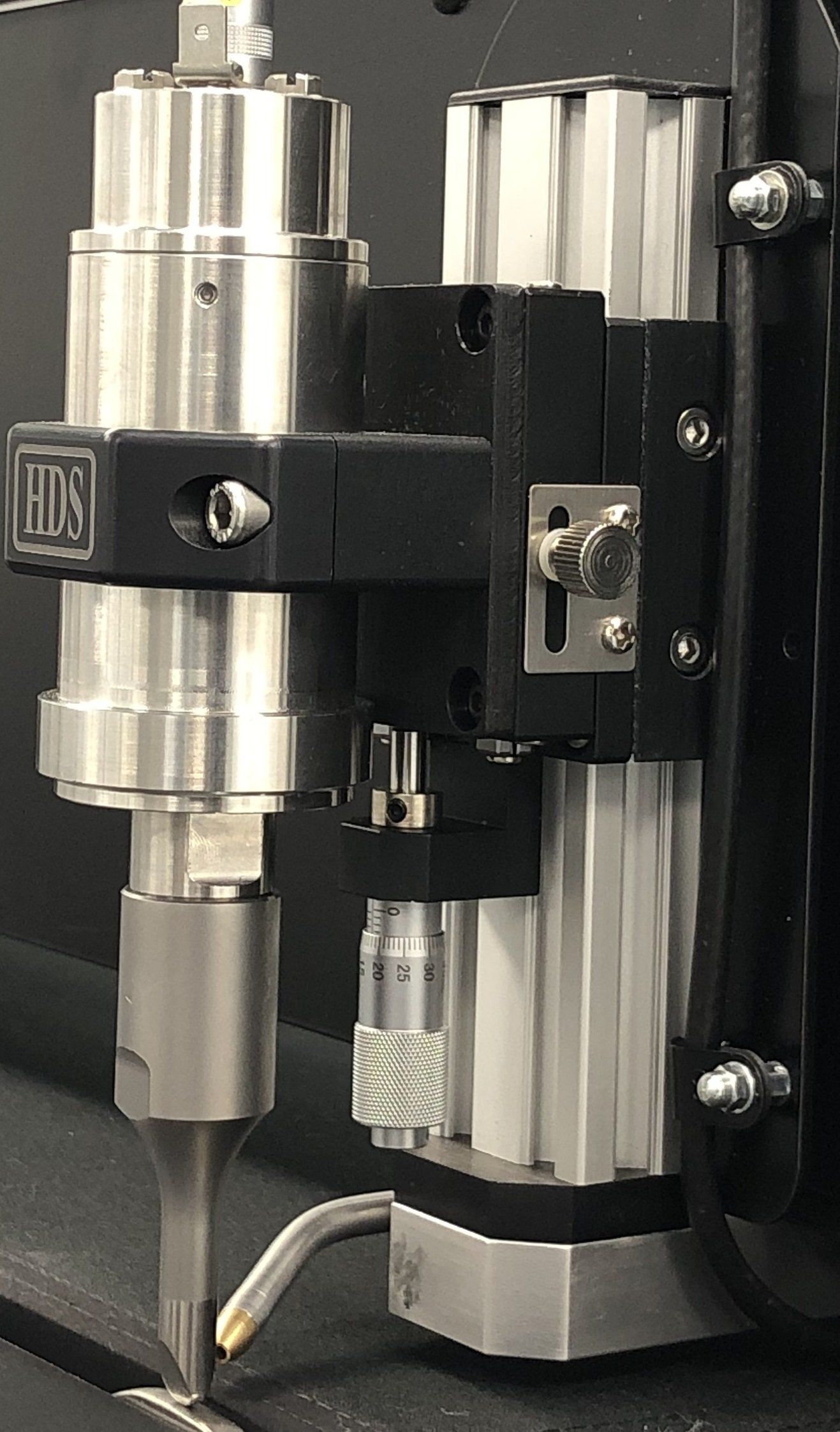

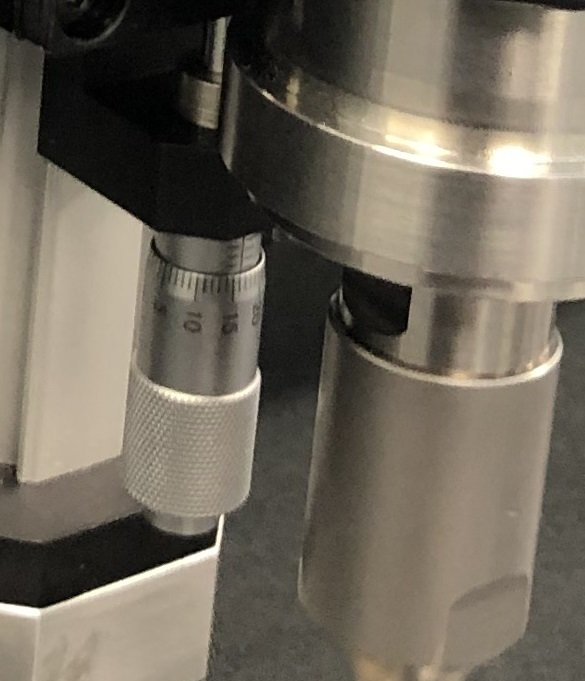

Micro Head Adjustment
Used for the precise setting of the probe tip height depending on the film thickness.

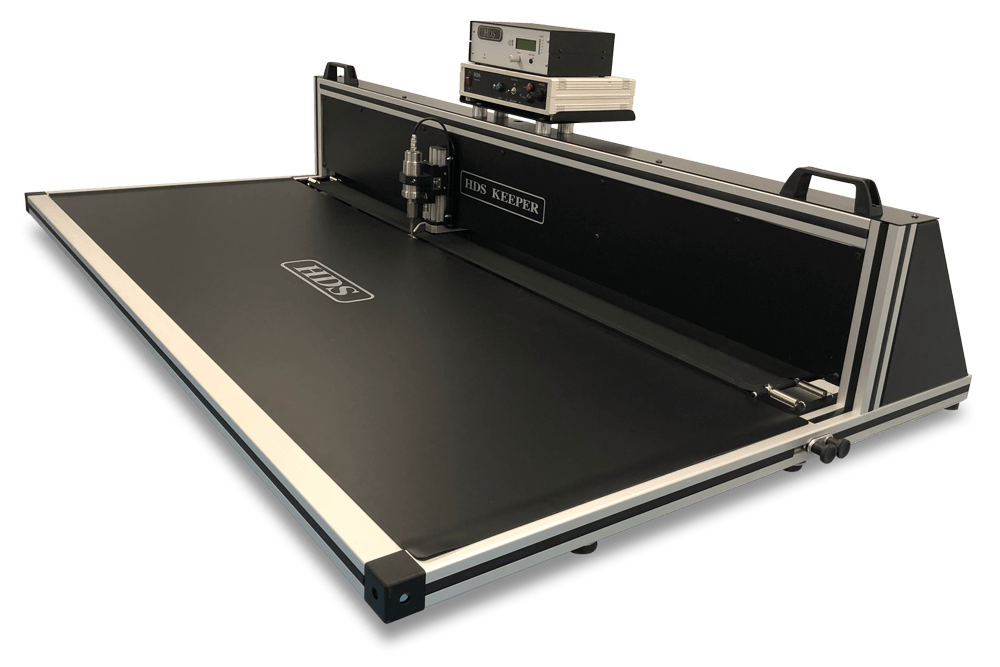

Keeper 900 & 1300
HDS have been sucessfully manufacturing and supplying this range of ultrasonic document encapsulators to institutes world-wide since 1992.
Our focus has alway been on quality and reliability.
Featured on all machines
- Weber 400W - 40KHz ultrasonic generator. See generator data
- Probe Tip Cooling fitted as standard.
- Ultra Long life and maintenance free precision linear drive system for reliability and a smooth & quiet operation.
- Micro Head (Thickness) Adjustment.
- Micro Head Adjustment Lock.
- 12 VDC Parvalux permanent magnet motor.
- Fully automatic drive system with built in safety interlocks.
- Interlocking table with screen-printed grid and magnetic mat to expel air and support document whilst welding.
- Spot weld facility.
- Fully enclosed mechanical parts for operator safety.
- For use with polyester (Mylar and Melinex) from 50 to 175 microns.
- Suitable for welding polyester to paper or thin card and bondina etc.
| Specifications: | Keeper 900 | Keeper 1300 |
|---|---|---|
| Supply Voltage | 230 VAC or 110 VAC | 230 VAC or 110 VAC |
| Dimensions | 1260 x 840 x 450 mm | 1660 x 960 x 450 mm |
| Weld Length | 890 mm | 1290 mm |
| Weight | Approximately 50Kg | Approximately 60Kg |
Probe height Lock
Keeps a fixed height setting during the welding process.
Recommended to be used on thicker films, or for when welding film to thin card.

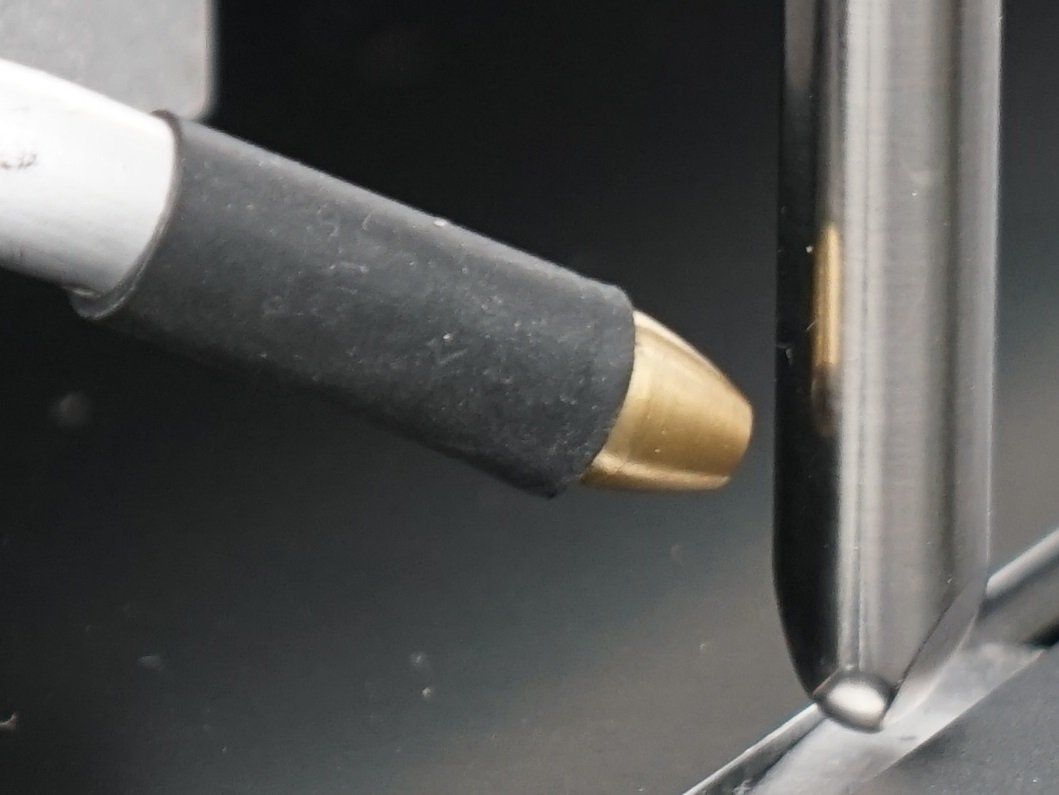

Probe Tip Cooling
Maintains a steady stream of cold air to stabilize the heat build up transmitted from the weld.
This is important to establish a consistent and repeatable weld, especially for long welds.

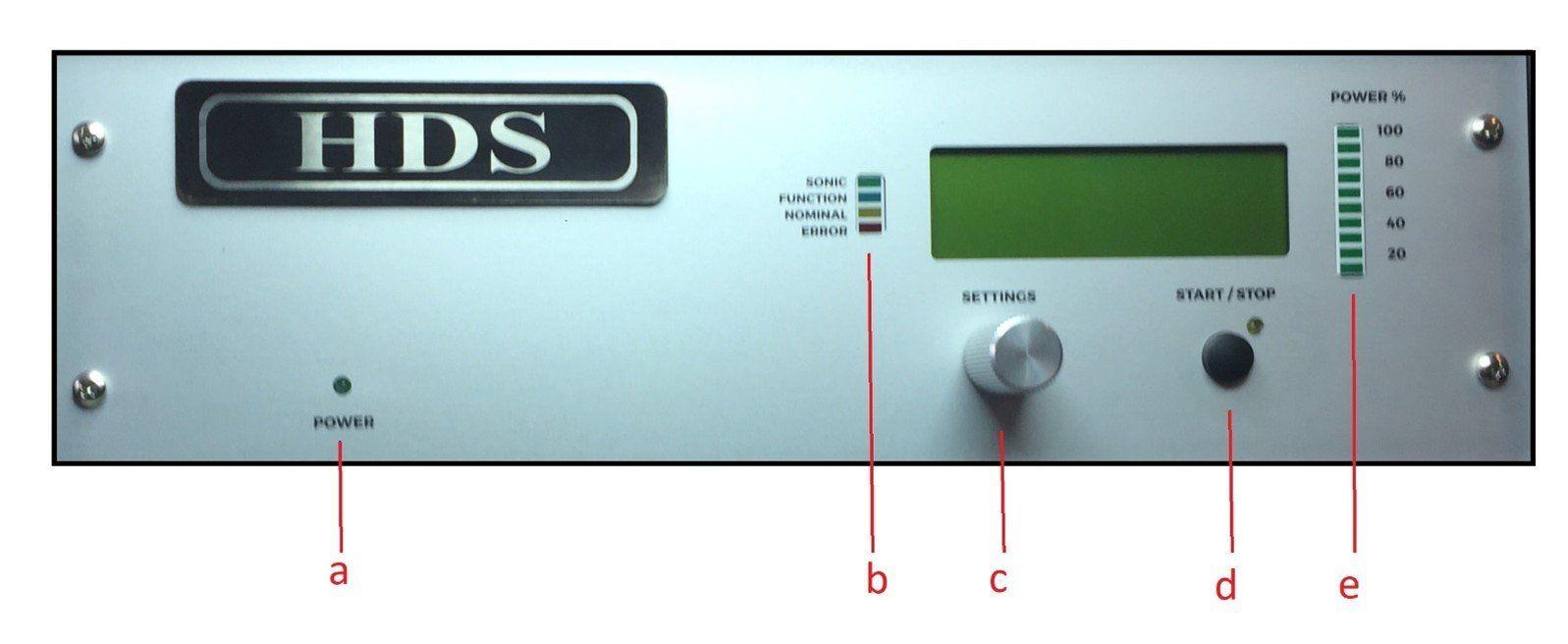

Ultrasonic Generator:
a) Power on indicator.
b) Function Indicator.
c) Function Selector. Used to set Amplitude (50-100%)
d) Test Button.
e) Power Output Display.

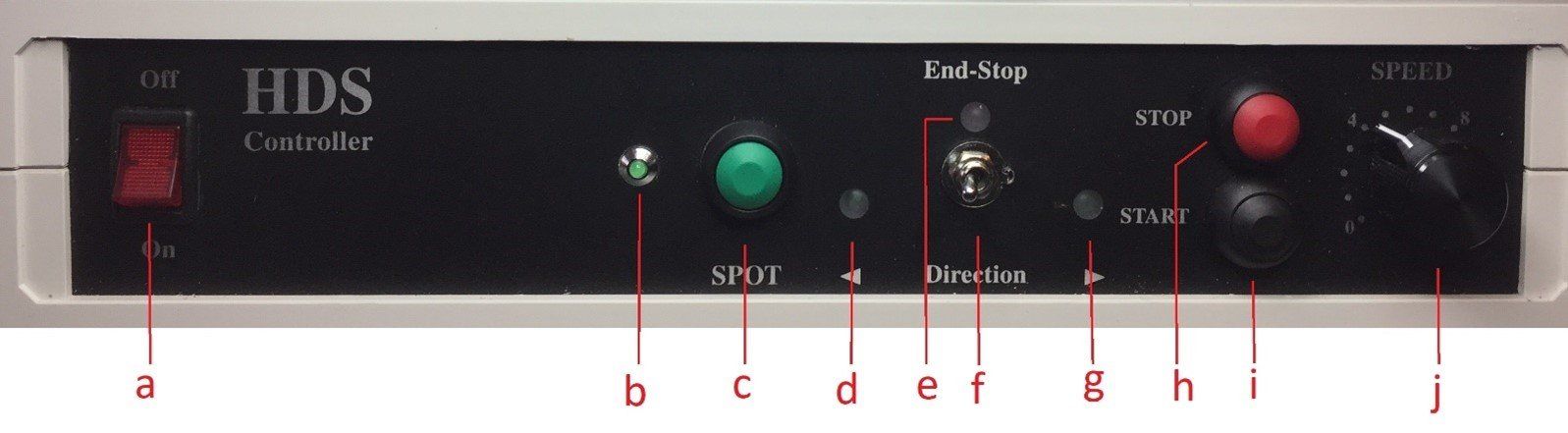

Speed Controller
- a) Mains Power On-Off Switch
- b) Output on
- c) Spot Weld
- d) Left Direction Indicator – the head will drive left
- e) End-Stop Indicator Machine end of travel.
- f) Direction Switch – Centre Position is Off/Stop
- g) Right Direction Indicator.
- h) Stop Button – Stops the weld & drive cycle
- i) Start Push Button – Starts head in the direction set.
- j) Variable Speed Control – Controls the speed that the head will travel.

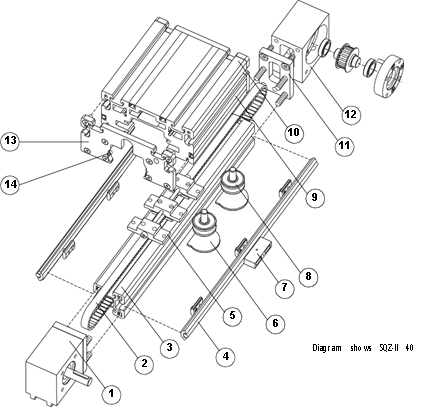

Ultra long life precision linear drive unit
| 1 | Toothed belt drive | 9 | Grease nipple |
|---|---|---|---|
| 2 | Toothed belt | 10 | Guidance slides |
| 3 | Guidance section | 11 | Adapter plate |
| 4 | Guidance shaft with support section | 12 | Toothed belt steering |
| 5 | Toothed belt tensioning kit | 13 | Cover |
| 6 | Roller cover | 14 | Felt wiper |
| 7 | Guidance shaft lubrication | ||
| 8 | Roller |
